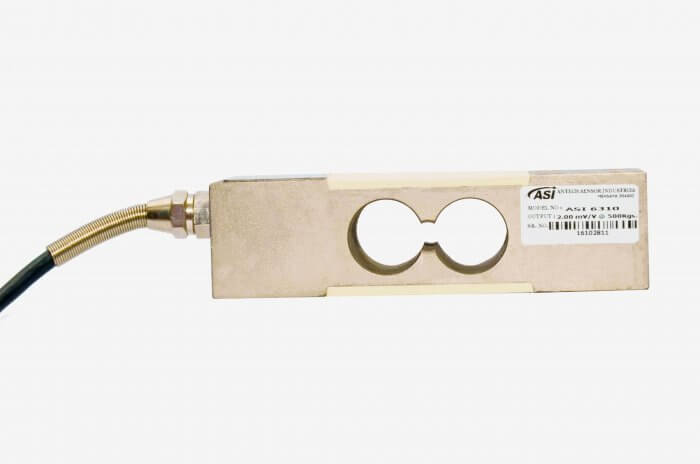

Single Point Platform Load Cell – ASI 6310
Features:
- Tool Steel Construction for Harsh Application
- Low Profile
- Single Point Capability with minimum error for off-centre loading
- Supports Platform Scale with size 600×600(mm)
- Compact, Light Weight & Economical
| Precision | C2/C3 |
|---|---|
| Composition Error | 0.03/0.02 |
| Rated Output (mv/v) | 2.0 ± 0.2 |
| Non-Linearity (%FS) | 0.025 |
| Hysteresis (%FS) | 0.02 |
| Repeatability (%FS) | 0.02/0.01 |
| Creep (%F.S /30min) | 0.03/0.02 |
| Zero Balance (%FS) | ± 1.0 |
| Input Resistance (Ω) | 400 ± 10 |
| Output Resistance (Ω) | 350 ± 2 |
| Insulation Resistance (MΩ) | ≥20000(50VDC) |
| Excitation Voltage (V) | 5 ~15 (DC) |
| Compensated Temp. Range (°C) | -10~+ 50 |
| Use Temp. Range (°C) | -20~+60 |
| Temp. Effect On Zero (%FS/10°C) | 0.02 |
| Temp. Effect On Span (%FS/10°C) | 0.02 |
| Safe Overload (%FS) | 150 |
| Ultimate Overload (%FS) | 250 |
| Defend Grade | IP67 |
| Cable | 5 mtr |
